info@qcc.co.nzTransforms from 5ft – 38ft – Remote Only

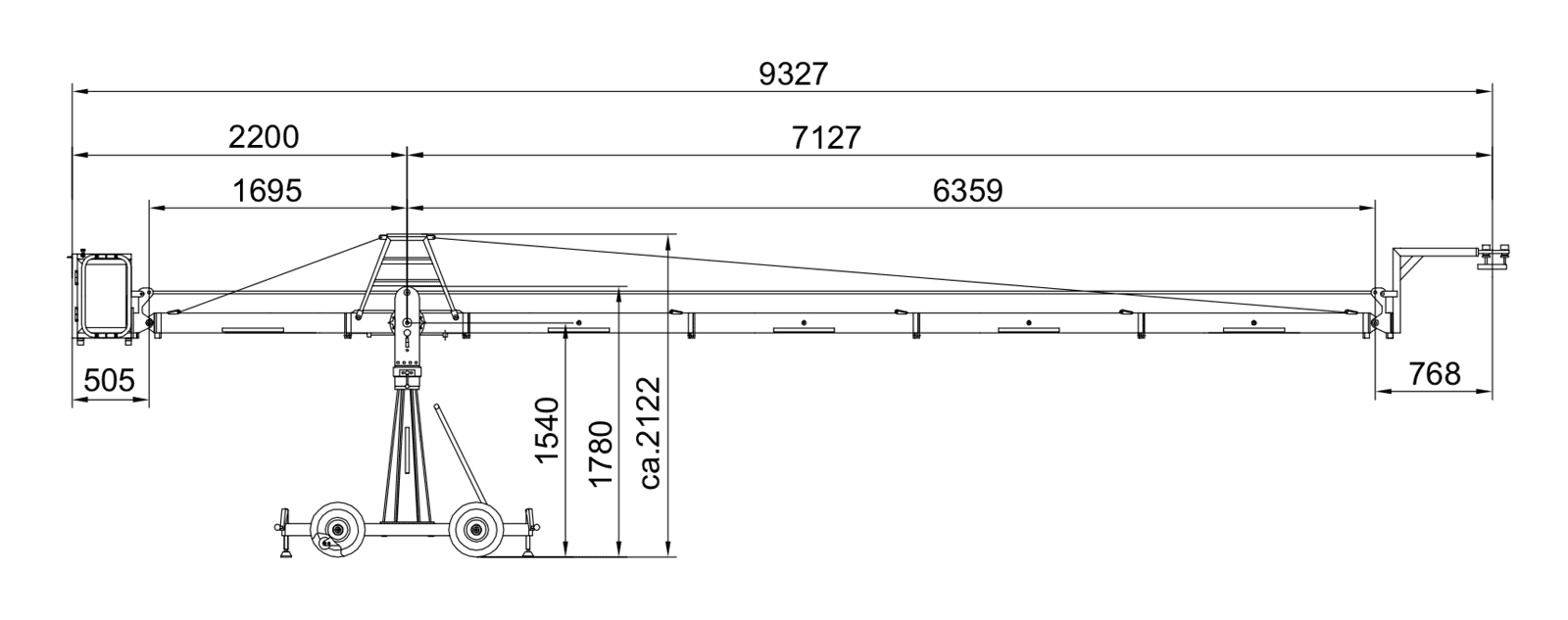

(above image is of G-8 Crane)
| Front extension arms required | 5 x 200cm/6’6″ * 1 x 100cm/3’3″ |
| Rear extension arms required | 1 x 150cm/5′ |
| Lift range | 1854cm/60’9″ |
| Maximum height to Mitchell plate | 1142cm/37’5″ |
| Lift capacity (working load) camera * accessories | 50kg/110lbs |
| Counterweight required | 820kg/1804lbs |
| Crane weight (excluding dolly and weights) | 361/794lbs |
| Dolly weight | 190kg/418lbs |
| Arm reach (pivot to camera head mount) | 1215cm/39’10” |
| Length of rear end (pivot to outside of bucket) | 256cm/8’4″ |
| Height to top of pivot section | without rigging: 214cm/7′ / with rigging: 260cm/8’6″ |
