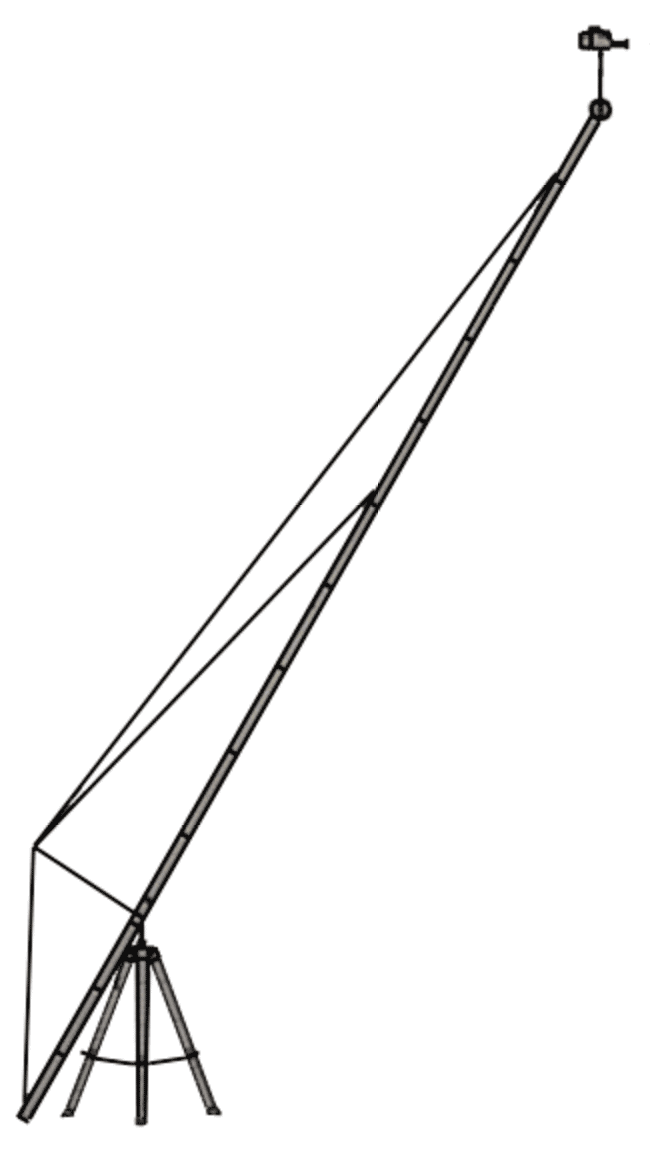

Jimmy Jib Crane

The Jimmy Jib Crane can be configured in a variety of ways – from Junior to Extreme, which offer differing load capacity, height and reach capabilities. The most accurate way to compare jib arms is to use reach instead of height. Reach is the length from the pivot point at the tripod, to the front of the jib.

Extreme	Capacity: 50lbs/22.6kg	Height: 35’/10.6m	Reach: 30’/9.1m
Super Plus	Capacity: 50lbs/22.6kg	Height: 30’/9.1m	Reach: 24’/7.3m
Super	Capacity: 50lbs/22.6kg	Height: 25’/7.6m	Reach: 18’/5.4m
Giant Plus	Capacity: 50lbs/22.6kg	Height: 23’/7.0m	Reach: 15’/4.5m
Giant	Capacity: 30lbs/13.6kg or 50lbs/22.6kg with 2nd rear extension	Height: 19’/5.7m	Reach: 12’/3.6m
Standard Plus	Capacity: 60lbs/27.2kg	Height: 16’/4.8m	Reach: 9’/2.7m
Standard	Capacity: 65lbs/29.4kg	Height: 13’/3.9m	Reach: 6’/1.8m
Junior	Capacity: 100lbs/45.3kg	Height: 9’/2.7m	Reach: 3’/0.9m

Notes: One rear section for the Junior, Standard, Standard Plus and Giant. Add second rear section for the Giant Plus and Super (or Giant for additional camera capacity). Add third rear section for the Extreme configuration.
